Image viewer 3.0

Yasinta Yusniawati

05111740000054 PBO B

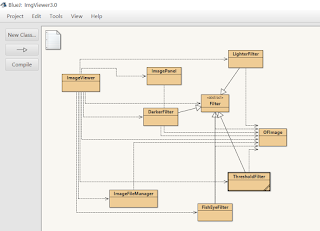

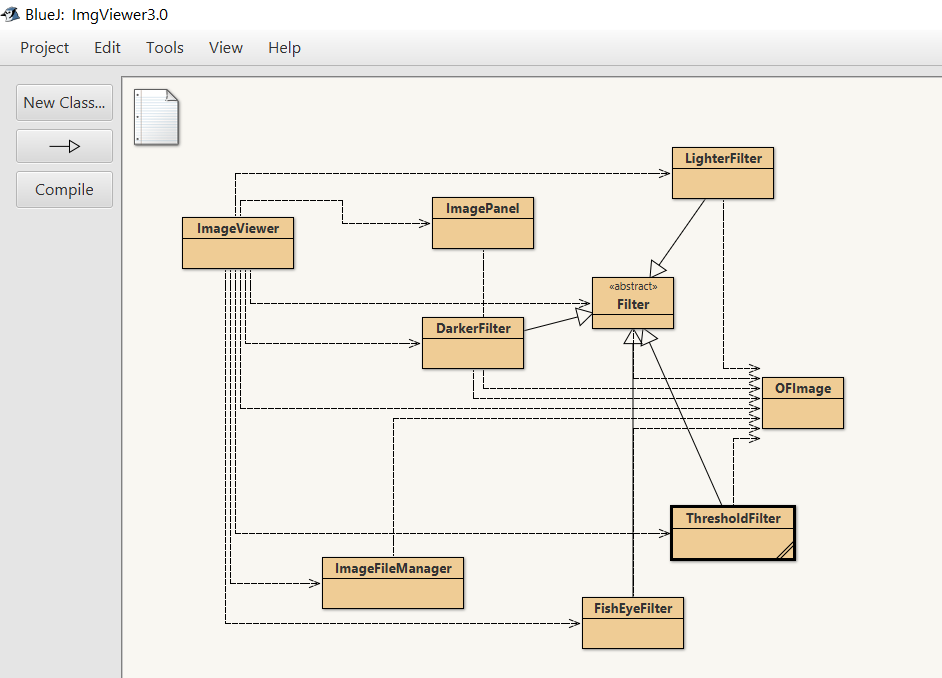

Class yang di butuhkan untuk membuta image viewer 3.0 tertera dalam gambar berikut :

Source Code :

1. ImageViewer

 import java.awt.*;
 import java.awt.event.*;
 import java.awt.image.*;
 import javax.swing.*;
 import javax.swing.border.*;
 import java.io.File;
 import java.util.List;
 import java.util.ArrayList;
 import java.util.Iterator;
 /**
  * Yasinta Yusniawati
  * PBO B
  * 2 Des 2018
  */
 public class ImageViewer
 {
   // static fields:
   private static final String VERSION = "Version 3.0";
   private static JFileChooser fileChooser = new JFileChooser(System.getProperty("user.dir"));
   // fields:
   private JFrame frame;
   private ImagePanel imagePanel;
   private JLabel filenameLabel;
   private JLabel statusLabel;
   private JButton smallerButton;
   private JButton largerButton;
   private OFImage currentImage;
   private List<Filter> filters;
   /**
    * Create an ImageViewer and display its GUI on screen.
    */
   public ImageViewer()
   {
     currentImage = null;
     filters = createFilters();
     makeFrame();
   }
   // ---- implementation of menu functions ----
   /**
    * Open function: open a file chooser to select a new image file,
    * and then display the chosen image.
    */
   private void openFile()
   {
     int returnVal = fileChooser.showOpenDialog(frame);
     if(returnVal != JFileChooser.APPROVE_OPTION) {
       return; // cancelled
     }
     File selectedFile = fileChooser.getSelectedFile();
     currentImage = ImageFileManager.loadImage(selectedFile);
     if(currentImage == null) {  // image file was not a valid image
       JOptionPane.showMessageDialog(frame,
           "The file was not in a recognized image file format.",
           "Image Load Error",
           JOptionPane.ERROR_MESSAGE);
       return;
     }
     imagePanel.setImage(currentImage);
     setButtonsEnabled(true);
     showFilename(selectedFile.getPath());
     showStatus("File loaded.");
     frame.pack();
   }
   /**
    * Close function: close the current image.
    */
   private void close()
   {
     currentImage = null;
     imagePanel.clearImage();
     showFilename(null);
     setButtonsEnabled(false);
   }
   /**
    * Save As function: save the current image to a file.
    */
   private void saveAs()
   {
     if(currentImage != null) {
       int returnVal = fileChooser.showSaveDialog(frame);
       if(returnVal != JFileChooser.APPROVE_OPTION) {
         return; // cancelled
       }
       File selectedFile = fileChooser.getSelectedFile();
       ImageFileManager.saveImage(currentImage, selectedFile);
       showFilename(selectedFile.getPath());
     }
   }
   /**
    * Quit function: quit the application.
    */
   private void quit()
   {
     System.exit(0);
   }
   /**
    * Apply a given filter to the current image.
    *
    * @param filter  The filter object to be applied.
    */
   private void applyFilter(Filter filter)
   {
     if(currentImage != null) {
       filter.apply(currentImage);
       frame.repaint();
       showStatus("Applied: " + filter.getName());
     }
     else {
       showStatus("No image loaded.");
     }
   }
   /**
    * 'About' function: show the 'about' box.
    */
   private void showAbout()
   {
     JOptionPane.showMessageDialog(frame,
           "ImageViewer\n" + VERSION,
           "About ImageViewer",
           JOptionPane.INFORMATION_MESSAGE);
   }
   /**
    * Make the current picture larger.
    */
   private void makeLarger()
   {
     if(currentImage != null) {
       // create new image with double size
       int width = currentImage.getWidth();
       int height = currentImage.getHeight();
       OFImage newImage = new OFImage(width * 2, height * 2);
       // copy pixel data into new image
       for(int y = 0; y < height; y++) {
         for(int x = 0; x < width; x++) {
           Color col = currentImage.getPixel(x, y);
           newImage.setPixel(x * 2, y * 2, col);
           newImage.setPixel(x * 2 + 1, y * 2, col);
           newImage.setPixel(x * 2, y * 2 + 1, col);
           newImage.setPixel(x * 2+1, y * 2 + 1, col);
         }
       }
       currentImage = newImage;
       imagePanel.setImage(currentImage);
       frame.pack();
     }
   }
   /**
    * Make the current picture smaller.
    */
   private void makeSmaller()
   {
     if(currentImage != null) {
       // create new image with double size
       int width = currentImage.getWidth() / 2;
       int height = currentImage.getHeight() / 2;
       OFImage newImage = new OFImage(width, height);
       // copy pixel data into new image
       for(int y = 0; y < height; y++) {
         for(int x = 0; x < width; x++) {
           newImage.setPixel(x, y, currentImage.getPixel(x * 2, y * 2));
         }
       }
       currentImage = newImage;
       imagePanel.setImage(currentImage);
       frame.pack();
     }
   }
   // ---- support methods ----
   /**
    * Show the file name of the current image in the fils display label.
    * 'null' may be used as a parameter if no file is currently loaded.
    *
    * @param filename The file name to be displayed, or null for 'no file'.
    */
   private void showFilename(String filename)
   {
     if(filename == null) {
       filenameLabel.setText("No file displayed.");
     }
     else {
       filenameLabel.setText("File: " + filename);
     }
   }
   /**
    * Show a message in the status bar at the bottom of the screen.
    * @param text The message to be displayed.
    */
   private void showStatus(String text)
   {
     statusLabel.setText(text);
   }
   /**
    * Enable or disable all toolbar buttons.
    *
    * @param status 'true' to enable the buttons, 'false' to disable.
    */
   private void setButtonsEnabled(boolean status)
   {
     smallerButton.setEnabled(status);
     largerButton.setEnabled(status);
   }
   /**
    * Create a list with all the known filters.
    * @return The list of filters.
    */
   private List<Filter> createFilters()
   {
     List<Filter> filterList = new ArrayList<Filter>();
     filterList.add(new DarkerFilter("Darker"));
     filterList.add(new LighterFilter("Lighter"));
     filterList.add(new ThresholdFilter("Threshold"));
     filterList.add(new FishEyeFilter("Fish Eye"));
     return filterList;
   }
   // ---- swing stuff to build the frame and all its components ----
   /**
    * Create the Swing frame and its content.
    */
   private void makeFrame()
   {
     frame = new JFrame("ImageViewer");
     JPanel contentPane = (JPanel)frame.getContentPane();
     contentPane.setBorder(new EmptyBorder(6, 6, 6, 6));
     makeMenuBar(frame);
     // Specify the layout manager with nice spacing
     contentPane.setLayout(new BorderLayout(6, 6));
     // Create the image pane in the center
     imagePanel = new ImagePanel();
     imagePanel.setBorder(new EtchedBorder());
     contentPane.add(imagePanel, BorderLayout.CENTER);
     // Create two labels at top and bottom for the file name and status message
     filenameLabel = new JLabel();
     contentPane.add(filenameLabel, BorderLayout.NORTH);
     statusLabel = new JLabel(VERSION);
     contentPane.add(statusLabel, BorderLayout.SOUTH);
     // Create the toolbar with the buttons
     JPanel toolbar = new JPanel();
     toolbar.setLayout(new GridLayout(0, 1));
     smallerButton = new JButton("Smaller");
     smallerButton.addActionListener(new ActionListener() {
                 public void actionPerformed(ActionEvent e) { makeSmaller(); }
               });
     toolbar.add(smallerButton);
     largerButton = new JButton("Larger");
     largerButton.addActionListener(new ActionListener() {
                 public void actionPerformed(ActionEvent e) { makeLarger(); }
               });
     toolbar.add(largerButton);
     // Add toolbar into panel with flow layout for spacing
     JPanel flow = new JPanel();
     flow.add(toolbar);
     contentPane.add(flow, BorderLayout.WEST);
     // building is done - arrange the components
     showFilename(null);
     setButtonsEnabled(false);
     frame.pack();
     // place the frame at the center of the screen and show
     Dimension d = Toolkit.getDefaultToolkit().getScreenSize();
     frame.setLocation(d.width/2 - frame.getWidth()/2, d.height/2 - frame.getHeight()/2);
     frame.setVisible(true);
   }
   /**
    * Create the main frame's menu bar.
    *
    * @param frame  The frame that the menu bar should be added to.
    */
   private void makeMenuBar(JFrame frame)
   {
     final int SHORTCUT_MASK =
       Toolkit.getDefaultToolkit().getMenuShortcutKeyMask();
     JMenuBar menubar = new JMenuBar();
     frame.setJMenuBar(menubar);
     JMenu menu;
     JMenuItem item;
     // create the File menu
     menu = new JMenu("File");
     menubar.add(menu);
     item = new JMenuItem("Open...");
       item.setAccelerator(KeyStroke.getKeyStroke(KeyEvent.VK_O, SHORTCUT_MASK));
       item.addActionListener(new ActionListener() {
                 public void actionPerformed(ActionEvent e) { openFile(); }
               });
     menu.add(item);
     item = new JMenuItem("Close");
       item.setAccelerator(KeyStroke.getKeyStroke(KeyEvent.VK_W, SHORTCUT_MASK));
       item.addActionListener(new ActionListener() {
                 public void actionPerformed(ActionEvent e) { close(); }
               });
     menu.add(item);
     menu.addSeparator();
     item = new JMenuItem("Save As...");
       item.setAccelerator(KeyStroke.getKeyStroke(KeyEvent.VK_S, SHORTCUT_MASK));
       item.addActionListener(new ActionListener() {
                 public void actionPerformed(ActionEvent e) { saveAs(); }
               });
     menu.add(item);
     menu.addSeparator();
     item = new JMenuItem("Quit");
       item.setAccelerator(KeyStroke.getKeyStroke(KeyEvent.VK_Q, SHORTCUT_MASK));
       item.addActionListener(new ActionListener() {
                 public void actionPerformed(ActionEvent e) { quit(); }
               });
     menu.add(item);
     // create the Filter menu
     menu = new JMenu("Filter");
     menubar.add(menu);
     for(final Filter filter : filters) {
       item = new JMenuItem(filter.getName());
       item.addActionListener(new ActionListener() {
                 public void actionPerformed(ActionEvent e) {
                   applyFilter(filter);
                 }
               });
        menu.add(item);
      }
     // create the Help menu
     menu = new JMenu("Help");
     menubar.add(menu);
     item = new JMenuItem("About ImageViewer...");
       item.addActionListener(new ActionListener() {
                 public void actionPerformed(ActionEvent e) { showAbout(); }
               });
     menu.add(item);
   }
 }

2. ImagePanel

 import java.awt.*;
 import javax.swing.*;
 import java.awt.image.*;
 /**
  * Yasinta Yusniawati
  * PBO B
  * 2 Des 2018
  */
 public class ImagePanel extends JComponent
 {
   // The current width and height of this panel
   private int width, height;
   // An internal image buffer that is used for painting. For
   // actual display, this image buffer is then copied to screen.
   private OFImage panelImage;
   /**
    * Create a new, empty ImagePanel.
    */
   public ImagePanel()
   {
     width = 360;  // arbitrary size for empty panel
     height = 240;
     panelImage = null;
   }
   /**
    * Set the image that this panel should show.
    *
    * @param image The image to be displayed.
    */
   public void setImage(OFImage image)
   {
     if(image != null) {
       width = image.getWidth();
       height = image.getHeight();
       panelImage = image;
       repaint();
     }
   }
   /**
    * Clear the image on this panel.
    */
   public void clearImage()
   {
     Graphics imageGraphics = panelImage.getGraphics();
     imageGraphics.setColor(Color.LIGHT_GRAY);
     imageGraphics.fillRect(0, 0, width, height);
     repaint();
   }
   // The following methods are redefinitions of methods
   // inherited from superclasses.
   /**
    * Tell the layout manager how big we would like to be.
    * (This method gets called by layout managers for placing
    * the components.)
    *
    * @return The preferred dimension for this component.
    */
   public Dimension getPreferredSize()
   {
     return new Dimension(width, height);
   }
   /**
    * This component needs to be redisplayed. Copy the internal image
    * to screen. (This method gets called by the Swing screen painter
    * every time it want this component displayed.)
    *
    * @param g The graphics context that can be used to draw on this component.
    */
   public void paintComponent(Graphics g)
   {
     Dimension size = getSize();
     g.clearRect(0, 0, size.width, size.height);
     if(panelImage != null) {
       g.drawImage(panelImage, 0, 0, null);
     }
   }
 }

3. OFImage

import java.awt.*;
 import java.awt.image.*;
 import javax.swing.*;
 /**
  * Yasinta Yusniawati
  * PBO B
  * 2 Des 2018
  */
 public class OFImage extends BufferedImage
 {
   /**
    * Create an OFImage copied from a BufferedImage.
    * @param image The image to copy.
    */
   public OFImage(BufferedImage image)
   {
      super(image.getColorModel(), image.copyData(null),
         image.isAlphaPremultiplied(), null);
   }
   /**
    * Create an OFImage with specified size and unspecified content.
    * @param width The width of the image.
    * @param height The height of the image.
    */
   public OFImage(int width, int height)
   {
     super(width, height, TYPE_INT_RGB);
   }
   /**
    * Set a given pixel of this image to a specified color. The
    * color is represented as an (r,g,b) value.
    * @param x The x position of the pixel.
    * @param y The y position of the pixel.
    * @param col The color of the pixel.
    */
   public void setPixel(int x, int y, Color col)
   {
     int pixel = col.getRGB();
     setRGB(x, y, pixel);
   }
   /**
    * Get the color value at a specified pixel position.
    * @param x The x position of the pixel.
    * @param y The y position of the pixel.
    * @return The color of the pixel at the given position.
    */
   public Color getPixel(int x, int y)
   {
     int pixel = getRGB(x, y);
     return new Color(pixel);
   }
 }

4. ImageFileManager

import java.awt.image.*;
 import javax.imageio.*;
 import java.io.*;
 /**
  * Yasinta Yusniawati
  * PBO B
  * 2 Des 2018
  */
 public class ImageFileManager
 {
   // A constant for the image format that this writer uses for writing.
   // Available formats are "jpg" and "png".
   private static final String IMAGE_FORMAT = "jpg";
   /**
    * Read an image file from disk and return it as an image. This method
    * can read JPG and PNG file formats. In case of any problem (e.g the file
    * does not exist, is in an undecodable format, or any other read error)
    * this method returns null.
    *
    * @param imageFile The image file to be loaded.
    * @return      The image object or null is it could not be read.
    */
   public static OFImage loadImage(File imageFile)
   {
     try {
       BufferedImage image = ImageIO.read(imageFile);
       if(image == null || (image.getWidth(null) < 0)) {
         // we could not load the image - probably invalid file format
         return null;
       }
       return new OFImage(image);
     }
     catch(IOException exc) {
       return null;
     }
   }
   /**
    * Write an image file to disk. The file format is JPG. In case of any
    * problem the method just silently returns.
    *
    * @param image The image to be saved.
    * @param file  The file to save to.
    */
   public static void saveImage(OFImage image, File file)
   {
     try {
       ImageIO.write(image, IMAGE_FORMAT, file);
     }
     catch(IOException exc) {
       return;
     }
   }
 }

5. Filter

 /**
  * Yasinta Yusniawati
  * PBO B
  * 2 Des 2018
  */
 public abstract class Filter
 {
   private String name;
   /**
    * Create a new filter with a given name.
    * @param name The name of the filter.
    */
   public Filter(String name)
   {
     this.name = name;
   }
   /**
    * Return the name of this filter.
    *
    * @return The name of this filter.
    */
   public String getName()
   {
     return name;
   }
   /**
    * Apply this filter to an image.
    *
    * @param image The image to be changed by this filter.
    */
   public abstract void apply(OFImage image);
 }

6. DarkerFilter

/**
  * Yasinta Yusniawati
  * PBO B
  * 2 Des 2018
  */
 public class DarkerFilter extends Filter
 {
   /**
    * Constructor for objects of class DarkerFilter.
    * @param name The name of the filter.
    */
   public DarkerFilter(String name)
   {
     super(name);
   }
   /**
    * Apply this filter to an image.
    *
    * @param image The image to be changed by this filter.
    */
   public void apply(OFImage image)
   {
     int height = image.getHeight();
     int width = image.getWidth();
     for(int y = 0; y < height; y++) {
       for(int x = 0; x < width; x++) {
         image.setPixel(x, y, image.getPixel(x, y).darker());
       }
     }
   }
 }

7. LighterFilter

/**
  * Yasinta Yusniawati
  * PBO B
  * 2 Des 2018
  */
 public class LighterFilter extends Filter
 {
      /**
       * Constructor for objects of class LighterFilter.
    * @param name The name of the filter.
       */
      public LighterFilter(String name)
   {
     super(name);
      }
   /**
    * Apply this filter to an image.
    *
    * @param image The image to be changed by this filter.
    */
   public void apply(OFImage image)
   {
     int height = image.getHeight();
     int width = image.getWidth();
     for(int y = 0; y < height; y++) {
       for(int x = 0; x < width; x++) {
         image.setPixel(x, y, image.getPixel(x, y).brighter());
       }
     }
   }
 }

8. FishEyeFilter

import java.awt.Color;
 /**
  * Yasinta Yusniawati
  * PBO B
  * 2 Des 2018
  */
 public class FishEyeFilter extends Filter
 {
   // constants:
   private final static int SCALE = 20;  // this defines the strenght of the filter
   private final static double TWO_PI = 2 * Math.PI;
   /**
    * Constructor for objects of class LensFilter.
    * @param name The name of the filter.
    */
   public FishEyeFilter(String name)
   {
     super(name);
   }
   /**
    * Apply this filter to an image.
    *
    * @param image The image to be changed by this filter.
    */
   public void apply(OFImage image)
   {
     int height = image.getHeight();
     int width = image.getWidth();
     OFImage original = new OFImage(image);
     int[] xa = computeXArray(width);
     int[] ya = computeYArray(height);
     for(int y = 0; y < height; y++) {
       for(int x = 0; x < width; x++) {
         image.setPixel(x, y, original.getPixel(x + xa[x], y + ya[y]));
       }
     }
   }
   /**
    * Compute and return an array of horizontal offsets for each pixel column.
    * These can then be applied as the horizontal offset for each pixel.
    */
   private int[] computeXArray(int width)
   {
     int[] xArray = new int[width];
     for(int i=0; i < width; i++) {
       xArray[i] = (int)(Math.sin( ((double)i / width) * TWO_PI) * SCALE);
     }
     return xArray;
   }
   /**
    * Compute and return an array of vertical offsets for each pixel row.
    * These can then be applied as the vertical offset for each pixel.
    */
   private int[] computeYArray(int height)
   {
     int[] yArray = new int[height];
     for(int i=0; i < height; i++) {
       yArray[i] = (int)(Math.sin( ((double)i / height) * TWO_PI) * SCALE);
     }
     return yArray;
   }
 }

9. ThresholdFilter

import java.awt.Color;
 /**
  * Yasinta Yusniawati
  * PBO B
  * 2 Des 2018
  */
 public class ThresholdFilter extends Filter
 {
      /**
       * Constructor for objects of class ThresholdFilter.
    * @param name The name of the filter.
       */
      public ThresholdFilter(String name)
   {
     super(name);
      }
   /**
    * Apply this filter to an image.
    *
    * @param image The image to be changed by this filter.
    */
   public void apply(OFImage image)
   {
     int height = image.getHeight();
     int width = image.getWidth();
     for(int y = 0; y < height; y++) {
       for(int x = 0; x < width; x++) {
         Color pixel = image.getPixel(x, y);
         int brightness = (pixel.getRed() + pixel.getBlue() + pixel.getGreen()) / 3;
         if(brightness <= 85) {
           image.setPixel(x, y, Color.BLACK);
         }
         else if(brightness <= 170) {
           image.setPixel(x, y, Color.GRAY);
         }
         else {
           image.setPixel(x, y, Color.WHITE);
         }
       }
     }
   }
 }
